Dual-Path Security

DUO IP/LTE

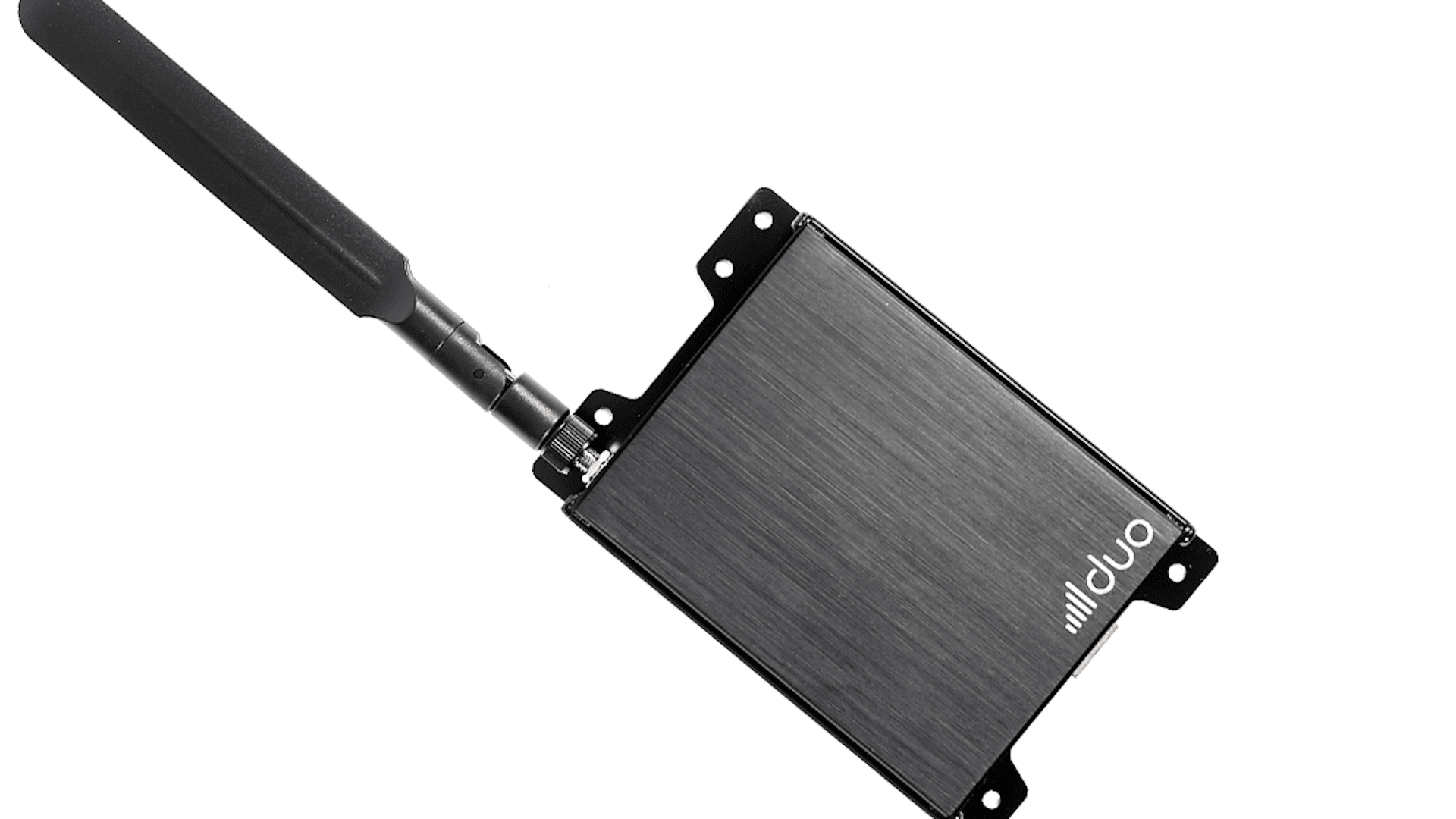

DUO™ IP/LTE Dual-Path Security Module For DSC & Honeywell Panels

Dual-Path control

The DUO™ IP/LTE is a full DUAL-PATH solution in one form factor. It is a powerful TCP-IP and/or LTE based bus-level interface to DSC PowerSeries* panels and Honeywell Vista* panels. It allows you to view the status of and even control your alarm panel through a standard web-browser or smart-phone. The DUO™ also supports a special Stand-Alone mode that allows it to form the base of a customizable full security system on its own.

Get rid of your phone line

Because the DUO is an Internet and/or LTE based security device, you no longer need a phone line for your security system to send alarms to the central station or alerts to you or your contact's smartphone.

Supports

EnvisAlerts Standard

EnvisAlerts Plus

Direct SMS

IP Monitoring

LTE Service

Module Features

100BaseT Ethernet Support
Improved diagnostic LEDs to speed installation
Remotely upgradable to allow for new features and services
Multiple partition support
Encrypted communications
LTE CAT-M1 & NB-IoT
GSM 4G
SIA and ContactID
Simple installation
Horizontal or vertical mount
DUO module may be mounted up to 50m (150 feet) from the alarm panel if necessary
Amazon Alexa and Google Home compatible

Specifications

Power Draw: 90 mA nominal
Connectors: RJ45, 4-Terminal Spring-load Bus,Expansion Connector
Dimensions (Without Antenna): 142 mm (5-5/8") 90 mm (3-9/16")

Included In The Box

DUO LTE Module (SIM card included. Please note if SIM is not activated within 1 year of purchase it will expire.)
Antenna
Hardware Kit
Installation Guide

Panel Compatibility

DSC PowerSeries (1555, 1555 MX, 1575, 5010 (832), 5020 (864), 1616, 1832, 1864)
Honeywell Vista Panels (Vista20P, 21iP, 15P, 10P, 128P, and 250P)
